3-Phase Cooling Tower Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 1, 765 Nameplate RPM MPN:01018ET3ECT215TF1-W2
3-Phase Cooling Tower Motor, 10 HP, 213/5T Frame, 230/460V AC Voltage, 1, 765 Nameplate RPM

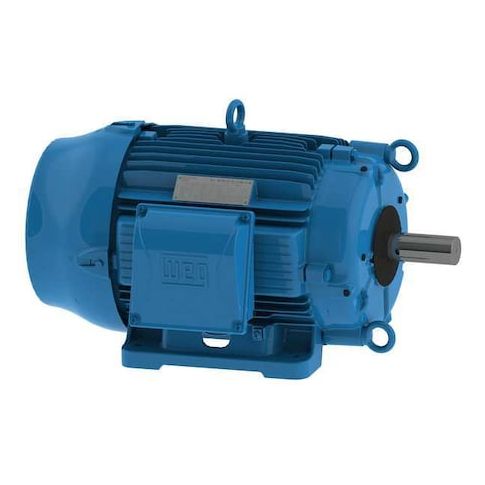

This 3-Phase Cooling Tower Motor is designed for heavy-duty applications, providing reliable and efficient operation in a variety of settings. Suitable for use in cooling towers, air conditioning systems, and industrial processes, it offers a 10 HP output and 1,765 RPM nameplate speed. The motor's totally enclosed fan-cooled design ensures optimal performance in harsh environments, while its cast iron frame and ball bearings provide durability and long lifespan. With a service factor of 1.25 and a 40°C ambient temperature rating, this motor is ideal for use in hot and humid conditions, making it an excellent choice for industrial cooling applications.
Top product features:
- Totally Enclosed Fan Cooled design for increased motor durability and reliability
- Three-Phase operation for efficient power consumption and reduced energy costs
- Ball bearings for smooth and quiet motor operation
Top product applications:
- HVAC systems
- Industrial cooling systems
- Commercial building air conditioning systems
Cooling Tower Motor, Three-Phase, Totally Enclosed Fan Cooled, 10 hp HP, 1,765 RPM Nameplate RPM, 213-5T Frame, CW/CCW Motor Shaft Rotation, 230/460V AC Voltage, 24.8/12.4 A Full Load Amps, Three Phase, 60 Hz Hz, Rigid Base Motor Mounting Type, Motor Mounting Position All Angle, Motor Bearings Ball, Motor Frame Material Cast Iron, None Motor Thermal Protection, 1.25 Motor Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1 3/8 in, Shaft Length 3 3/8 in, Length Less Shaft 16 1/8 in
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.40
- Package Width: 16.10
- Package Height: 14.00
- Package Weight: 176.00
Product info last updated on March 22, 2026 12:51pm UTC
Category: Motors
