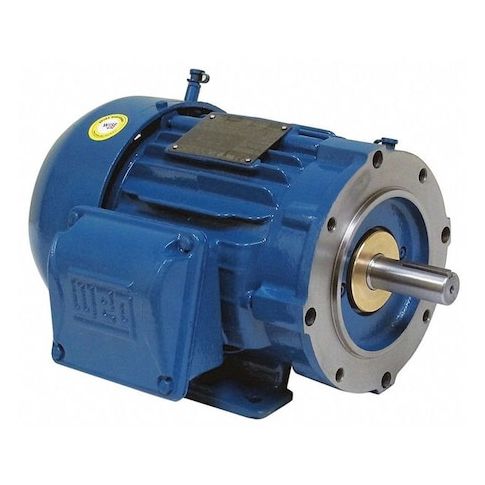

Three-Phase Severe Duty Motor, 5 hp HP, 215TC Frame, 460V AC Voltage, 1, 170 RPM Nameplate RPM MPN:00512ST3QIE215TC-W22
Three-Phase Severe Duty Motor, 5 hp HP, 215TC Frame, 460V AC Voltage, 1, 170 RPM Nameplate RPM
This severe duty motor is designed for high-performance applications, delivering 5 horsepower at 1,170 RPM in a 215TC frame. Suitable for use at 460V AC, it operates at 60Hz and is rated for continuous duty cycles. The totally enclosed fan-cooled motor provides reliable operation in harsh environments and is protected by a 1.25 service factor. Its compact design makes it ideal for use in industries such as manufacturing, oil and gas, and food processing, where high-torque output and long motor life are essential. The motor's rugged construction ensures minimal downtime and maximum productivity.
Top product features:
- Three-phase design for efficient power distribution
- Totally enclosed fan cooled for reduced noise and increased durability
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Heavy Industry Applications
- Oil and Gas Pumping Systems
- Chemical Processing Plants
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 1,170 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 6.8 A, 215TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, C-Face, NEMA Design Not Applicable
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 187.00
Product info last updated on January 14, 2026 9:51am UTC
Category: Motors
