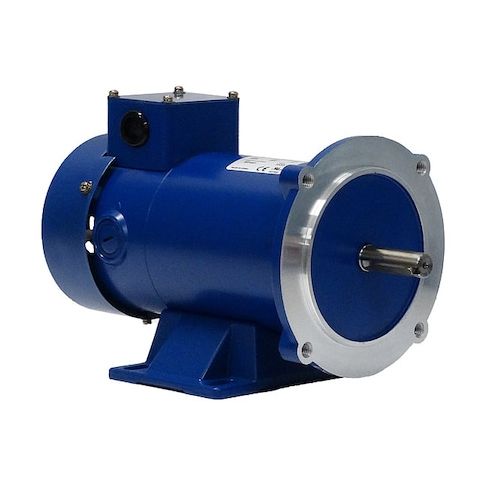

DC Permanent Magnet Motor, 3/4 HP, 3.90 A MPN:MT-044
DC Permanent Magnet Motor, 3/4 HP, 3.90 A
The Weg DC Permanent Magnet Motor is a reliable and efficient solution for a variety of applications, including industrial automation, material handling, and power generation. Its 3/4 HP rating and 1,750 RPM make it suitable for low-to-medium power requirements. The motor's permanent magnet design and totally enclosed fan-cooled enclosure ensure high reliability and long lifespan. With a continuous duty cycle and a maximum ambient temperature of 40°C, this motor can operate in a range of environments. Its compact size and rigid base make it easy to integrate into existing systems, making it an ideal choice for a wide range of industrial applications.
Top product features:
- Permanent Magnet DC motor design
- Totally Enclosed Fan-Cooled motor enclosure
- Ball bearings for smooth operation
Top product applications:
- Industrial conveyor systems
- Pumping systems in chemical plants
- Material handling systems in manufacturing facilities
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet DC, 3/4 HP, Nameplate RPM 1,750, Voltage 180V DC, 3.90 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection Not Applicable, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 16.00
- Package Width: 8.00
- Package Height: 8.00
- Package Weight: 26.00
Product info last updated on January 14, 2026 12:43pm UTC
Category: Motors
