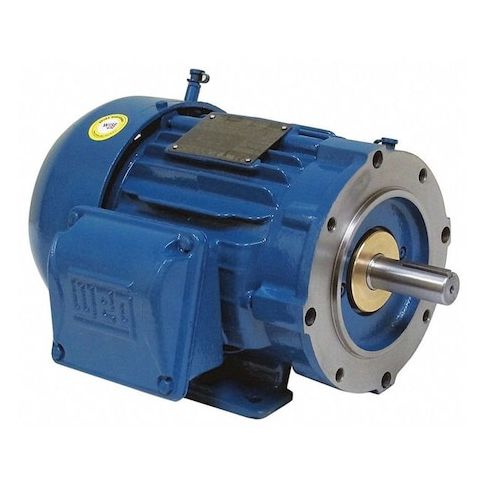

Three-Phase Severe Duty Motor, 3 hp HP, 213TC Frame, 460V AC Voltage, 1, 175 RPM Nameplate RPM MPN:00312ST3QIE213TC-W22
Three-Phase Severe Duty Motor, 3 hp HP, 213TC Frame, 460V AC Voltage, 1, 175 RPM Nameplate RPM
The Weg Three-Phase Severe Duty Motor is a robust and reliable solution for demanding applications. Designed for continuous operation in harsh environments, this motor features a totally enclosed fan-cooled (TEFC) design and a rigid base mounting system for increased stability. With a high service factor of 1.25, it can handle heavy loads and withstand extreme temperatures up to 40°C. Suitable for use in industries such as manufacturing, oil and gas, and mining, this motor is ideal for applications requiring high torque and efficiency, including conveyor systems, pumps, and compressors, and is available for immediate shipment in 10 days.
Top product features:
- Three-Phase Design allows for high power density and efficient operation
- Totally Enclosed Fan Cooled Enclosure provides protection from dust and moisture
- Continuous Duty Cycle enables uninterrupted operation for extended periods
Top product applications:
- High-torque applications such as heavy-duty pumps and compressors
- Industrial machinery requiring high power and reliability
- Large-scale manufacturing equipment and assembly lines
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 3 hp HP, Nameplate RPM 1,175 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 4.4 A, 213TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, C-Face, NEMA Design Not Applicable
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.00
- Package Height: 14.50
- Package Weight: 166.00
Product info last updated on January 18, 2026 12:26am UTC
Category: Motors
