Pump Mtr, 3ph, 25hp, 3555, 208-230/460, 284JP MPN:02536ET3E284JP-W22
Pump Mtr, 3ph, 25hp, 3555, 208-230/460, 284JP

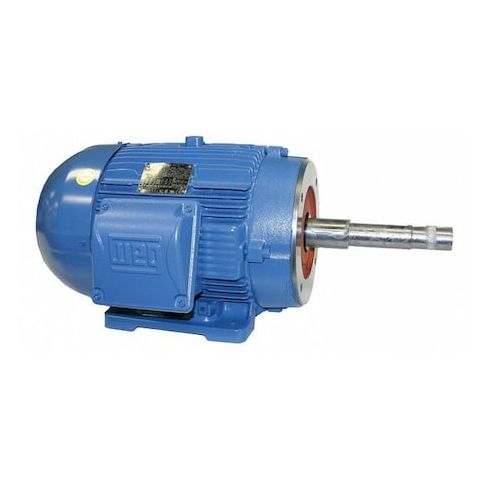

The Weg 284JP 25hp close-coupled pump motor is designed for continuous duty cycles and is ideal for use in industrial applications where a reliable and efficient motor is required. With a 1000:1 inverter rating, this motor is suitable for use with variable frequency drives and can provide significant energy savings. Its compact design and exterior conduit box location make it easy to integrate into existing systems. The motor is rated for use in temperatures up to 40°C and comes with a 3-year manufacturer's warranty. Suitable for use in a variety of applications, including chemical processing, water treatment, and oil and gas.
Top product features:
- Close-Coupled design for reduced installation time and space requirements
- Ball bearings for increased motor reliability and reduced maintenance
- Inverter rated for compatibility with variable frequency drives and increased efficiency
Top product applications:
- Pump
- Motor
- Inverter
Close-Coupled Pump Motor, Body Dia. 13.8 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 284/6JP, Hz 60 Hz, Full Load Amps 63.0-57.0/28.5, Height 13 13/16 in, HP 25, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 23 7/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.00
- Package Width: 22.50
- Package Height: 18.00
- Package Weight: 405.00
Product info last updated on January 14, 2026 10:16am UTC
Category: Motors
