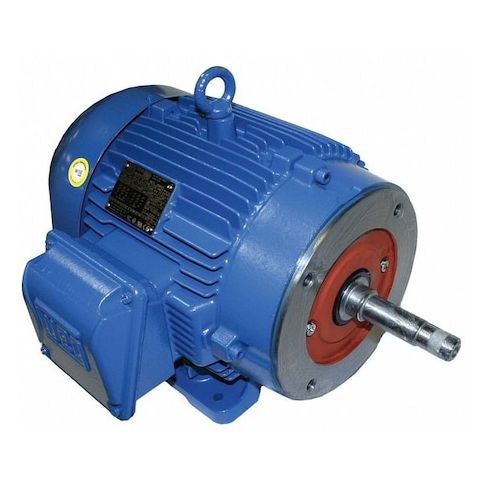

Pump Mtr, 3ph, 10hp, 3530, 208-230/460, 215JM MPN:01036ET3E215JM-W22
Pump Mtr, 3ph, 10hp, 3530, 208-230/460, 215JM
This close-coupled pump motor is designed for high-performance applications, featuring a 10hp, 3-phase motor with a 10.5 inch body diameter and 7.25 inch bolt circle diameter. Suitable for continuous duty cycles, it operates within a 40°C maximum ambient temperature and is rated for inverter use with a 1000:1 rating. The motor is specifically designed for pump applications, utilizing ball bearings for smooth operation. Its compact design and high efficiency make it ideal for a variety of industrial settings, including manufacturing, water treatment, and chemical processing. Its reliability and durability ensure a long lifespan and reduced maintenance costs.
Top product features:
- Close-coupled design for efficient cooling and reduced vibration
- Inverter-rated for use with variable frequency drives
- Ball bearings for long motor life and reliable operation
Top product applications:
- Pump
- Motor
- Industrial equipment
Close-Coupled Pump Motor, Body Dia. 10.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 213/5JM, Hz 60 Hz, Full Load Amps 25.7-23.2/11.6, Height 10 1/2 in, HP 10, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 16 1/8 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.00
- Package Width: 25.50
- Package Height: 18.70
- Package Weight: 194.00
