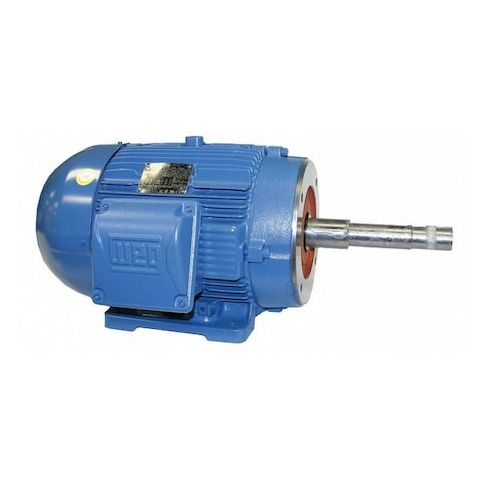

Pump Mtr, 3ph, 20hp, 3530, 208-230/460, 256JP MPN:02036ET3E256JP-W22
Pump Mtr, 3ph, 20hp, 3530, 208-230/460, 256JP
This 20 horsepower, three-phase pump motor from Weg is designed for continuous duty cycles and features a close-coupled design for efficient operation. Suitable for various applications, including pump systems, it offers high torque and reliability. With a wide range of voltage compatibility and a 1000:1 inverter rating, it can be easily integrated into existing systems. The motor's ball bearings ensure smooth operation, while its durable design withstands high ambient temperatures. Ideal for use in demanding environments, this motor provides reliable performance and long lifespan, making it a valuable asset for industrial and commercial applications.
Top product features:
- Close-coupled design for reduced installation space requirements
- Ball bearings for smooth and quiet operation
- Inverter-rated for use in variable frequency drive applications
Top product applications:
- Pump
- Inverter
- Motor
Close-Coupled Pump Motor, Body Dia. 12.9 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 254/6JP, Hz 60 Hz, Full Load Amps 51.3-46.4/23.2, Height 12 15/16 in, HP 20, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 20 15/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 21.00
- Package Height: 16.00
- Package Weight: 315.00
Product info last updated on February 14, 2026 11:20am UTC
Category: Motors
