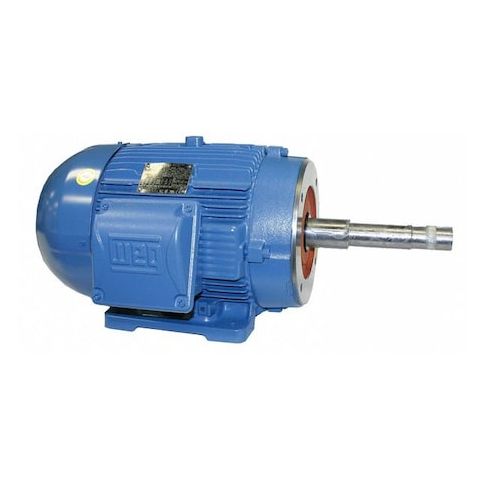

Pump Mtr, 3ph, 15hp, 3535, 208-230/460, 254JP MPN:01536ET3E254JP-W22
Pump Mtr, 3ph, 15hp, 3535, 208-230/460, 254JP
This 15 horsepower, 3-phase pump motor is a reliable and efficient solution for various industrial applications. Designed for continuous duty cycles, it features a close-coupled design for optimal performance and reduced maintenance. The motor's inverter-rated design and 1000:1 inverter rating make it suitable for use with variable frequency drives. With a maximum ambient temperature of 40 degrees C, it can withstand harsh environments. Ideal for use in pumping applications, this motor is a cost-effective and durable option for industries such as water treatment, chemical processing, and oil and gas. Its compact design and easy installation make it a convenient choice.
Top product features:
- Close-coupled design for reduced space requirements
- Three-phase motor for efficient power transmission
- Ball bearings for smooth and quiet operation
Top product applications:
- Pump
- Motor
- Inverter
Close-Coupled Pump Motor, Body Dia. 12.9 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 254/6JP, Hz 60 Hz, Full Load Amps 37.6-34.4/17.2, Height 12 15/16 in, HP 15, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 20 15/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 20.00
- Package Height: 16.00
- Package Weight: 270.00
Product info last updated on March 7, 2026 10:37pm UTC
Category: Motors
