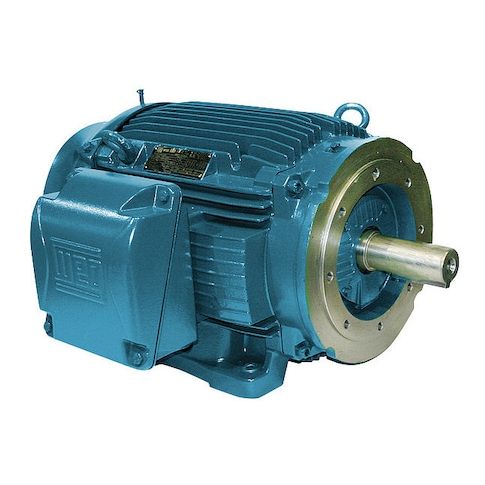

Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 230/460V AC Voltage, 3600 Nameplate RPM MPN:00136ET3E143TC-W22
Three-Phase General Purpose Motor, 1 HP, 143TC Frame, 230/460V AC Voltage, 3600 Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 3500 rpm, Frame 143TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.88/1.44 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 81.5 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 12.40
- Package Height: 9.60
- Package Weight: 41.93
Product info last updated on January 14, 2026 10:39am UTC
Category: Motors
