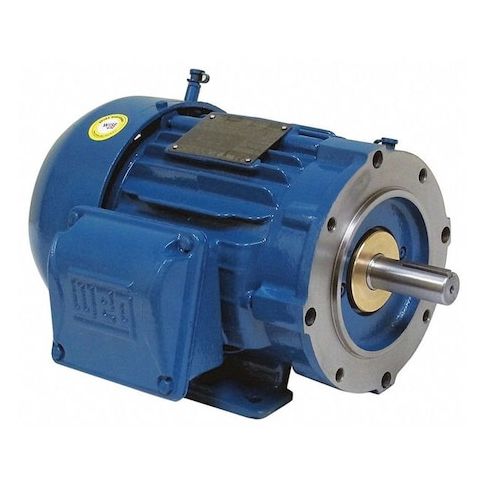

Three-Phase Severe Duty Motor, 10 hp HP, 256TC Frame, 460V AC Voltage, 1, 175 RPM Nameplate RPM MPN:01012ST3QIE256TC-W22
Three-Phase Severe Duty Motor, 10 hp HP, 256TC Frame, 460V AC Voltage, 1, 175 RPM Nameplate RPM
The Weg Three-Phase Severe Duty Motor is a reliable and efficient solution for demanding applications. Suitable for continuous duty cycles, this motor is designed to operate in extreme conditions, with a maximum ambient temperature of 40 degrees C and a motor service factor of 1.25. Its totally enclosed fan-cooled design ensures optimal performance and longevity. With a nameplate RPM of 1,175, this motor is ideal for use in manufacturing, oil and gas, and other industries where high-torque applications are required. Its compact 256TC frame and 460V AC voltage make it a versatile addition to any facility.
Top product features:
- Three-phase operation provides a stable and efficient power supply.
- Totally Enclosed Fan Cooled design helps to dissipate heat and prolong motor life.
- Continuous duty cycle allows for uninterrupted operation in demanding applications.
Top product applications:
- Pump applications in the oil and gas industry
- Heavy-duty conveyor belt systems
- Powering high-torque machinery in manufacturing plants
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,175 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 12.9 A, 256TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, C-Face, NEMA Design Not Applicable
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.30
- Package Width: 20.30
- Package Height: 16.00
- Package Weight: 300.00
Product info last updated on February 3, 2026 11:00am UTC
Category: Motors
