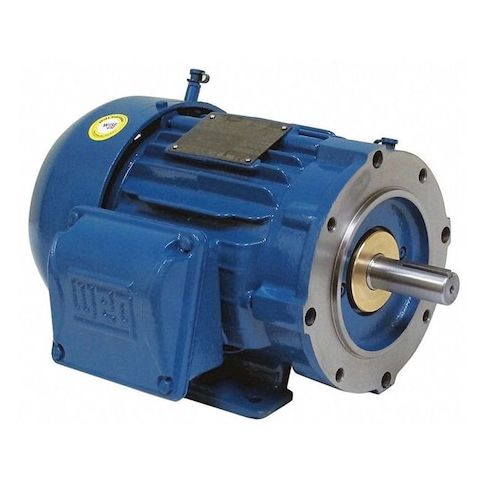

Three-Phase Severe Duty Motor, 1 hp HP, 145TC Frame, 460V AC Voltage, 1, 160 RPM Nameplate RPM MPN:00112ST3QIE145TC-W22
Three-Phase Severe Duty Motor, 1 hp HP, 145TC Frame, 460V AC Voltage, 1, 160 RPM Nameplate RPM
This severe duty motor is designed for high-performance applications in demanding environments. With a 1 hp rating and 1,160 RPM nameplate speed, it's ideal for use in manufacturing, material handling, and other industrial settings. The totally enclosed fan-cooled design ensures reliable operation in harsh conditions, while the 1.25 service factor allows for continuous duty cycles. Its compact 145TC frame makes it easy to integrate into existing systems. Suitable for use at 460V AC, this motor is a reliable choice for applications requiring high torque and efficiency. Its durable construction and robust design make it a valuable asset for heavy-duty operations.
Top product features:
- Three-Phase Design
- Totally Enclosed Fan Cooled Enclosure
- 1.25 Service Factor
Top product applications:
- Pumps and water treatment equipment
- Centrifugal compressors and air compressors
- Conveyor systems and material handling equipment
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 1 hp HP, Nameplate RPM 1,160 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 1.7 A, 145TC Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, C-Face, NEMA Design Not Applicable
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.50
- Package Width: 12.50
- Package Height: 9.50
- Package Weight: 62.00
Product info last updated on January 28, 2026 6:38pm UTC
Category: Motors
