Pump Mtr, 3ph, 20hp, 1765, 208-230/460, 256JP MPN:02018ET3E256JP-W22
Pump Mtr, 3ph, 20hp, 1765, 208-230/460, 256JP

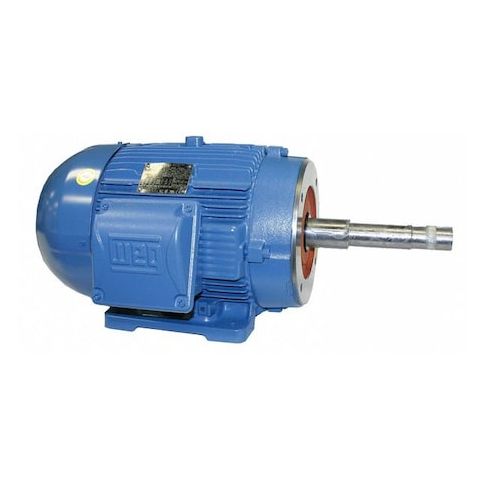

This 20-horsepower three-phase pump motor from Weg is designed for continuous duty cycles in demanding pump applications. Its close-coupled design and inverter-rated capabilities make it suitable for use with variable frequency drives, allowing for efficient and precise control over motor speed. The motor's ball bearings and frame 254/6JP design ensure reliable operation and long lifespan. With a 3-year manufacturer's warranty, this motor provides peace of mind for industrial and commercial users. Its compact size and robust construction make it an ideal choice for a variety of applications, including water treatment, chemical processing, and HVAC systems.
Top product features:
- Close-Coupled design for reduced installation time and increased efficiency
- Ball bearings for smooth and quiet operation
- Inverter Rated for use with variable frequency drives and high efficiency operation
Top product applications:
- Pump
- Motor
- Industrial Machinery
Close-Coupled Pump Motor, Body Dia. 12.9 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 254/6JP, Hz 60 Hz, Full Load Amps 53.3-48.2/24.1, Height 12 15/16 in, HP 20, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 20 15/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 20.00
- Package Height: 17.00
- Package Weight: 340.00
