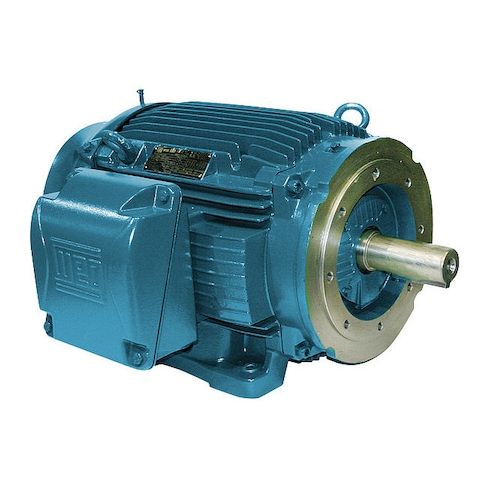

Three-Phase General Purpose Motor, 1 1/2 HP, 143TC Frame, 230/460V AC Voltage MPN:00156ET3E143TC-W22
Three-Phase General Purpose Motor, 1 1/2 HP, 143TC Frame, 230/460V AC Voltage
The Weg Three-Phase General Purpose Motor is a reliable and efficient solution for a wide range of applications. Suitable for use in continuous duty operations, this motor features a totally enclosed fan cooled design, ensuring optimal performance in harsh environments. With a high service factor and ball bearings, it provides extended motor life and reduced maintenance costs. Its compact 143TC frame and CW/CCW rotation make it an ideal choice for industrial equipment, machinery, and power generation systems. Ideal for use in manufacturing, oil and gas, and power generation industries, this motor offers high efficiency and reliability.
Top product features:
- Three-Phase Operation: The motor operates on three-phase AC voltage for efficient power delivery.
- Totally Enclosed Fan Cooled Design: The motor's enclosure design keeps it cool and protected from the environment, ensuring reliable operation.
- Ball Motor Bearings: The motor features ball bearings for smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Pumps and water treatment systems
- Fans and blowers in HVAC systems
- Conveyor systems and material handling equipment
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 3480 rpm, Frame 143TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.92/1.96 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 84 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.40
- Package Width: 11.70
- Package Height: 8.40
- Package Weight: 46.95
Product info last updated on January 19, 2026 10:00pm UTC
Category: Motors
