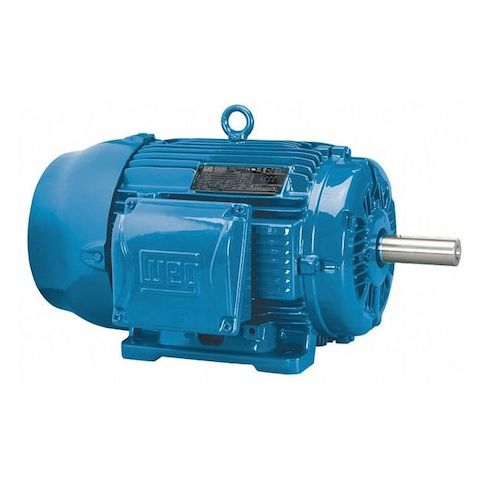

Three-Phase General Purpose Motor, 3 HP, 213T Frame, 575V AC Voltage, 1175 rpm Nameplate RPM MPN:00312ET3H213T-W22
Three-Phase General Purpose Motor, 3 HP, 213T Frame, 575V AC Voltage, 1175 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3 HP, Nameplate RPM 1175 rpm, Frame 213T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 3.53 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.30
- Package Width: 16.20
- Package Height: 14.30
- Package Weight: 148.00
Product info last updated on February 2, 2026 5:21pm UTC
Category: Motors
