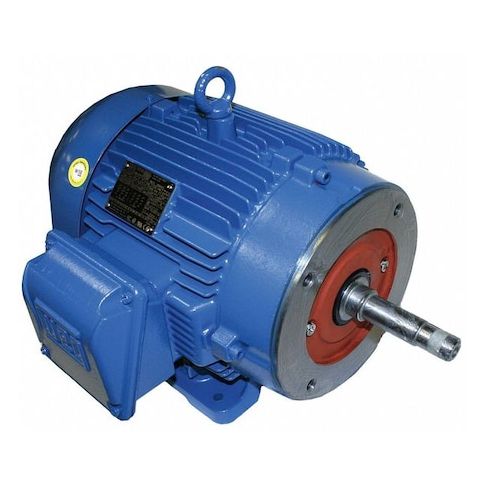

Pump Mtr, 3ph, 25hp, 3555, 208-230/460, 284JM MPN:02536ET3E284JM-W22
Pump Mtr, 3ph, 25hp, 3555, 208-230/460, 284JM
This 25 horsepower, three-phase pump motor from Weg is a reliable and efficient solution for a variety of industrial applications. Designed for continuous duty cycles, it features a close-coupled design and ball bearings for smooth operation. The motor is inverter-rated for use with variable frequency drives and has a 1000:1 rating, making it suitable for applications requiring precise speed control. With a maximum ambient temperature of 40°C and a 3-year manufacturer's warranty, this motor is a durable and long-lasting choice for industries such as water treatment, wastewater management, and chemical processing, where pumps are critical to operation.
Top product features:
- Close-coupled design for compact installation
- Ball bearings for smooth and efficient operation
- Inverter-rated for use in variable frequency drive applications
Top product applications:
- Pump
- Motor
- Inverter
Close-Coupled Pump Motor, Body Dia. 13.8 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 284/6JM, Hz 60 Hz, Full Load Amps 63.0-57.0/28.5, Height 13 13/16 in, HP 25, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 23 7/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 13 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.30
- Package Width: 22.80
- Package Height: 18.50
- Package Weight: 400.00
Product info last updated on February 4, 2026 3:49pm UTC
Category: Motors
