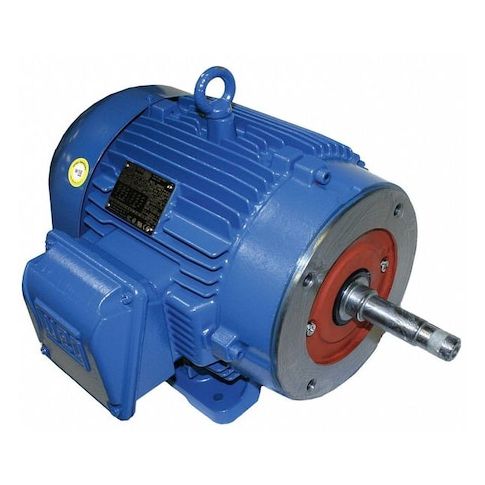

Pump Mtr, 3-Ph, 5hp, 3510, 208-230/460, 184JM MPN:00536ET3E184JM-W22
Pump Mtr, 3-Ph, 5hp, 3510, 208-230/460, 184JM
This 5-horsepower, 3-phase pump motor is designed for continuous duty cycles, making it ideal for demanding applications such as industrial water circulation, oil refining, and chemical processing. Its compact, close-coupled design and ball bearings ensure efficient operation and long motor life. With a high inverter rating of 1000:1, this motor is suitable for use in variable frequency drive systems, providing flexibility and energy savings. Its rugged construction and reliable performance make it a valuable asset for a wide range of industries, including manufacturing, mining, and wastewater treatment.
Top product features:
- Close-coupled design for compact installation
- Ball bearings for smooth and quiet operation
- Inverter-rated for use with variable frequency drives
Top product applications:
- Pump
- Motor
- Inverter
Close-Coupled Pump Motor, Body Dia. 9.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 13.1-11.8/5.9, Height 9 3/8 in, HP 5, HP @ 50Hz 4, 5, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 13 1/8 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.00
- Package Width: 14.50
- Package Height: 12.50
- Package Weight: 107.60
Product info last updated on February 16, 2026 10:05am UTC
Category: Motors
