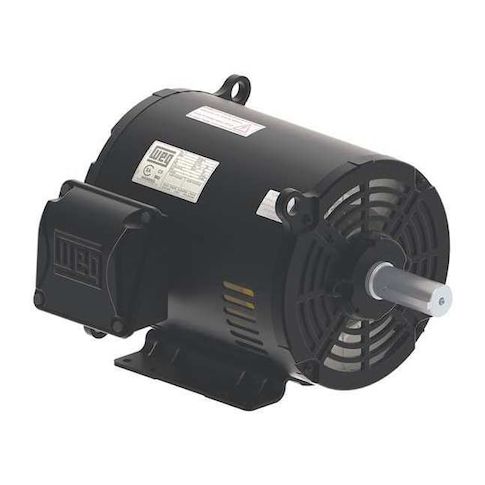

Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 3525 rpm Nameplate RPM MPN:02036OT3E254T-S
Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 230/460V AC Voltage, 3525 rpm Nameplate RPM
This 20 HP three-phase general purpose motor is designed for demanding industrial applications, providing reliable and efficient performance in a wide range of environments. With a nameplate RPM of 3525 and a thermal protection class of F, it can withstand heavy loads and high temperatures. The motor's rigid base mounting and steel frame ensure stability and durability. Suitable for continuous duty, it's ideal for use in factories, manufacturing plants, and other industrial settings where high power and efficiency are required. Its compact size and ease of installation make it a valuable addition to any industrial operation.
Top product features:
- Three-phase operation allows for efficient power distribution and reduced energy consumption.
- Open drip-proof motor enclosure design provides protection from dust and moisture, increasing motor lifespan.
- Ball motor bearings enable smooth and quiet operation, reducing vibration and noise.
Top product applications:
- Industrial Automation
- Pumping Systems
- Conveyor Systems
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 3525 rpm, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 47.6/23.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.42
- Package Width: 16.00
- Package Height: 13.00
- Package Weight: 196.00
Product info last updated on February 19, 2026 6:29am UTC
Category: Motors
