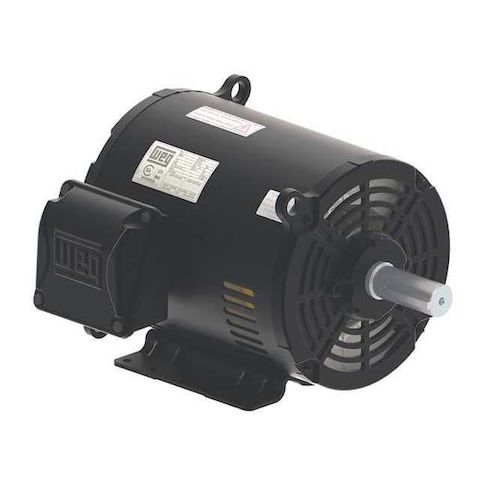

Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 575V AC Voltage, 1, 770 Nameplate RPM MPN:02018OT3H256T-S
Three-Phase General Purpose Motor, 20 HP, 254/6T Frame, 575V AC Voltage, 1, 770 Nameplate RPM
This 20 HP three-phase general purpose motor from Weg is designed for a variety of applications requiring high power and efficiency. With a nameplate RPM of 1,770 and a maximum ambient temperature of 40 degrees C, this motor is suitable for use in industrial settings where reliability and performance are crucial. Its rigid base mounting type and ball bearings ensure smooth operation and long lifespan. The motor's 93% nominal efficiency and continuous duty rating make it an ideal choice for applications such as pumps, fans, and conveyor systems, where consistent operation is critical.
Top product features:
- Three-phase design for efficient operation
- Open drip-proof motor enclosure for protection against dust and water
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Pumps
- Conveyors
- Fans
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 254/6T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 20.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.42
- Package Width: 16.00
- Package Height: 13.00
- Package Weight: 243.00
Product info last updated on February 2, 2026 1:58pm UTC
Category: Motors
