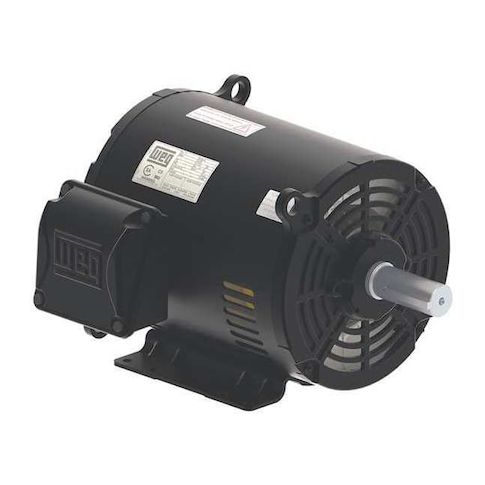

Three-Phase General Purpose Motor, 25 HP, 254/6T Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM MPN:02536OT3E256T-S
Three-Phase General Purpose Motor, 25 HP, 254/6T Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 3530 rpm, Frame 254/6T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 58.2/29.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.42
- Package Width: 16.00
- Package Height: 13.00
- Package Weight: 219.00
Product info last updated on February 4, 2026 7:34am UTC
Category: Motors
