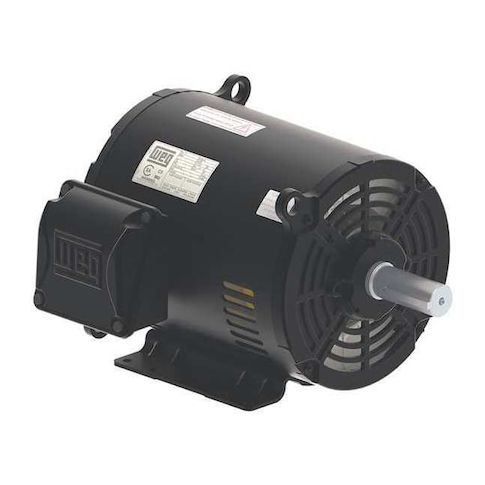

Three-Phase General Purpose Motor, 25 HP, 254/6T Frame, 575V AC Voltage, 3530 rpm Nameplate RPM MPN:02536OT3H256T-S
Three-Phase General Purpose Motor, 25 HP, 254/6T Frame, 575V AC Voltage, 3530 rpm Nameplate RPM
This high-performance 25 HP three-phase general purpose motor from Weg is designed for demanding applications that require reliability and efficiency. With a nameplate RPM of 3530 and a nominal efficiency of 91.7%, this motor is ideal for use in industrial settings such as manufacturing, processing, and material handling. Its open drip-proof motor enclosure design and rigid base mounting type provide a secure and durable installation. Suitable for continuous duty and operating temperatures up to 40°C, this motor is perfect for applications such as conveyor systems, pumps, and compressors, where high performance and reliability are critical.
Top product features:
- Three-phase design for efficient power distribution
- Open drip-proof motor enclosure for protection against dust and moisture
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Industrial manufacturing facilities
- Pumping stations
- Water treatment plants
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 3530 rpm, Frame 254/6T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.42
- Package Width: 16.00
- Package Height: 13.00
- Package Weight: 219.00
