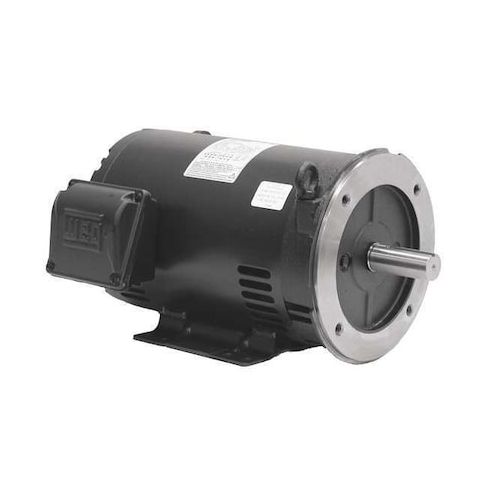

Three-Phase General Purpose Motor, 20 HP, 254/6TC Frame, 575V AC Voltage, 1, 770 Nameplate RPM MPN:02018OT3H256TC-S
Three-Phase General Purpose Motor, 20 HP, 254/6TC Frame, 575V AC Voltage, 1, 770 Nameplate RPM
This 20 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. Its 254/6TC frame and 575V AC voltage rating make it suitable for high-power applications, while its 1,770 nameplate RPM provides efficient operation. The motor's open drip proof enclosure design and rigid base mounting type ensure reliable and stable performance. With a service factor of 1.15 and a maximum ambient temperature rating of 40°C, this motor is ideal for use in demanding environments, providing a high level of efficiency and reliability.
Top product features:
- Three-phase operation allows for efficient power delivery and reduced energy consumption.
- Ball motor bearings provide smooth and quiet operation, reducing wear and tear on the motor.
- Continuous duty operation enables the motor to run for extended periods without overheating or failing.
Top product applications:
- Pump drives
- Conveyor systems
- Industrial machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 254/6TC, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 20.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CSA (70014057), UL (E104590
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.42
- Package Width: 16.00
- Package Height: 13.00
- Package Weight: 243.00
Product info last updated on February 5, 2026 4:34am UTC
Category: Motors
