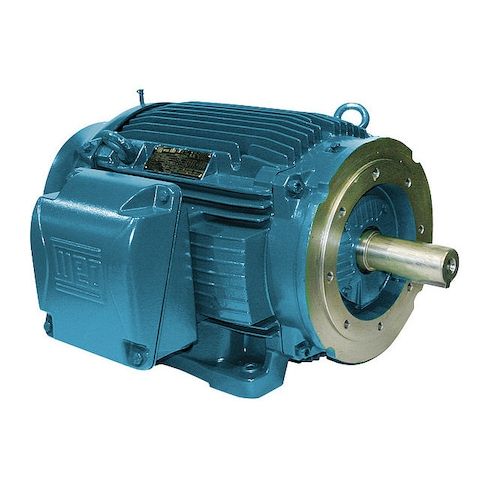

Three-Phase General Purpose Motor, 60 HP, 364/5TSC Frame, 230/460V AC Voltage MPN:06036ET3E364TSC-W22
Three-Phase General Purpose Motor, 60 HP, 364/5TSC Frame, 230/460V AC Voltage
This 60 HP three-phase general purpose motor is designed for heavy-duty applications that require reliable and efficient performance. With a totally enclosed fan cooled motor enclosure and ball bearings, it operates in a wide range of environments and conditions. Suitable for continuous duty, it's ideal for use in manufacturing, processing, and other industries where high power and efficiency are crucial. The motor's 93.6% nominal efficiency and 1.25 service factor ensure optimal performance and longevity, making it a reliable choice for applications such as conveyor systems, pumps, and compressors.
Top product features:
- Three-Phase AC Voltage Capability
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pump applications
- Industrial machinery
- Conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 60 HP, Nameplate RPM 3560 rpm, Frame 364/5TSC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 134.0/67.0 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.00
- Package Width: 41.50
- Package Height: 31.00
- Package Weight: 900.00
Product info last updated on February 3, 2026 9:57am UTC
Category: Motors
