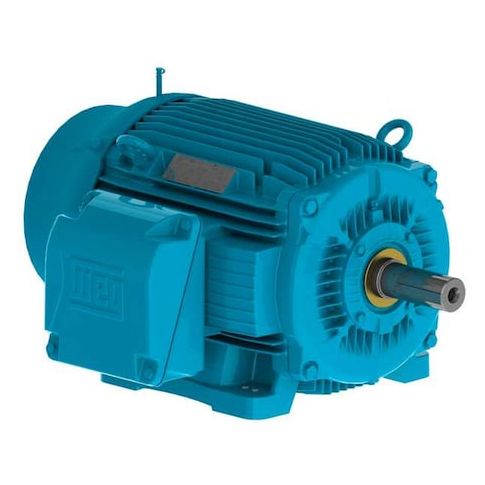

Three-Phase Hazardous Location Motor, 30 hp HP, 286TS Frame, 460V AC Voltage MPN:03036ST3QIE286TS-W22
Three-Phase Hazardous Location Motor, 30 hp HP, 286TS Frame, 460V AC Voltage
This Weg Three-Phase Hazardous Location Motor is designed for severe duty applications in hazardous environments, providing reliable operation in the most demanding conditions. With a 30 hp rating and 3,535 RPM, it's ideal for use in industries such as oil and gas, chemical processing, and manufacturing. Its totally enclosed fan cooled design and NEMA Design B rating ensure efficient cooling and reduced maintenance. The motor's 1.25 service factor and 60 Hz operation make it a versatile solution for a wide range of applications, including continuous duty cycles in temperatures up to 40°C.
Top product features:
- Three-phase design for efficient power distribution
- Totally Enclosed Fan Cooled design for reduced heat and increased durability
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pumps in chemical plants
- Oil and gas industry equipment
- Power generation and transmission systems
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 30 hp HP, Nameplate RPM 3,535 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 33.8 A, 286TS Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.50
- Package Width: 22.00
- Package Height: 18.00
- Package Weight: 393.00
Product info last updated on February 27, 2026 4:42am UTC
Category: Motors
