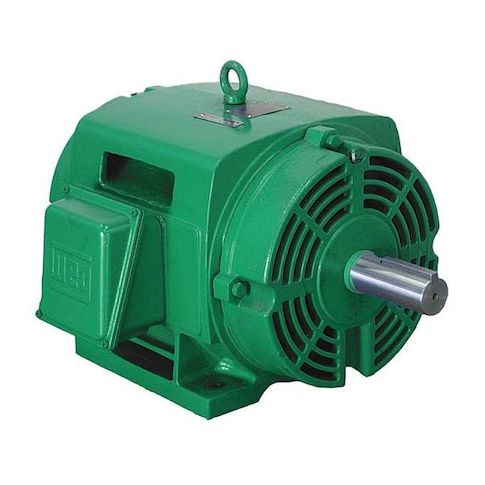

General Purpose Motor, Three Phase, 20 HP, 1, 770 Nameplate RPM, 575V AC, 256T Frame MPN:02018OT3H256T
General Purpose Motor, Three Phase, 20 HP, 1, 770 Nameplate RPM, 575V AC, 256T Frame
This 20 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial equipment, pumps, and fans. With a nameplate RPM of 1,770 and a maximum ambient temperature of 40°C, this motor can handle demanding environments. Its 93% nominal efficiency and continuous duty rating make it an ideal choice for applications requiring high performance and reliability. The motor's rigid base mounting type and cast iron frame provide stability and durability, while its ball bearings ensure smooth operation. Suitable for use in various industries, including manufacturing, oil and gas, and wastewater treatment.
Top product features:
- Three-Phase Design
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Pumps
- Conveyor systems
- Industrial fans
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1,770, Frame 256T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 19.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 20.40
- Package Width: 29.30
- Package Height: 16.00
- Package Weight: 327.00
Product info last updated on February 18, 2026 8:05am UTC
Category: Motors
