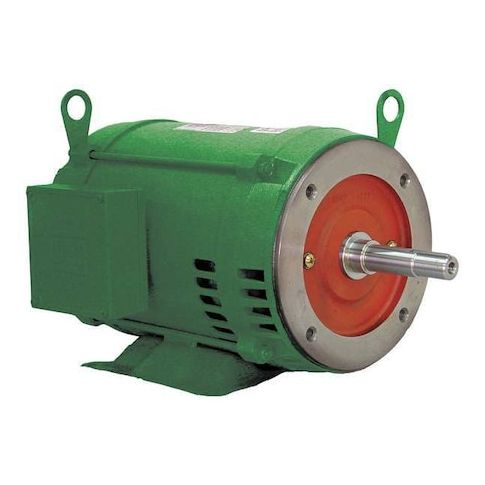

Pump Mtr, 3ph, 25hp, 1770, 208-230/460, 284JM MPN:02518OT3E284JM-W40
Pump Mtr, 3ph, 25hp, 1770, 208-230/460, 284JM
This 25 horsepower, three-phase pump motor from Weg is designed for continuous duty cycles in a variety of applications. Its close-coupled design and rugged construction make it ideal for use in demanding environments, such as industrial and commercial settings. The motor's inverter rating of 1000:1 allows for flexible and efficient operation, while its ball bearings ensure smooth and reliable performance. With a 3-year manufacturer's warranty and a lead time of just 10 days, this motor is a reliable choice for pumping systems in a range of industries, including water treatment, chemical processing, and oil and gas.
Top product features:
- Close-coupled design for compact installation
- Ball bearings for smooth and reliable operation
- Inverter-rated for use with variable frequency drives
Top product applications:
- Pump
- Motor Application
- Inverter Rated Motor
Close-Coupled Pump Motor, Body Dia. 13.8 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 284JM, Hz 60 Hz, Full Load Amps 66.1-59.8/29.9, Height 15 3/4 in, HP 25, HP @ 50Hz 20, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 18 13/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 34.40
- Package Width: 22.60
- Package Height: 18.00
- Package Weight: 398.00
Product info last updated on March 26, 2026 9:09am UTC
Category: Motors
