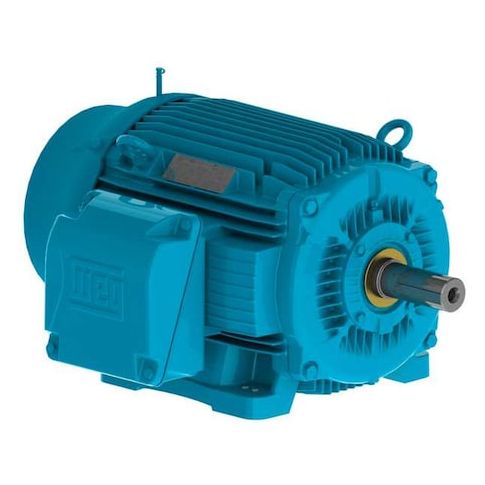

Three-Phase Severe Duty Motor, 1 1/2 hp HP, 145T Frame, 460V AC Voltage, 1, 755 RPM Nameplate RPM MPN:00158ST3QIE145T-W22
Three-Phase Severe Duty Motor, 1 1/2 hp HP, 145T Frame, 460V AC Voltage, 1, 755 RPM Nameplate RPM
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,755 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 2.0 A, 145T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.40
- Package Width: 12.20
- Package Height: 9.00
- Package Weight: 55.00
Product info last updated on February 4, 2026 2:16am UTC
Category: Motors
