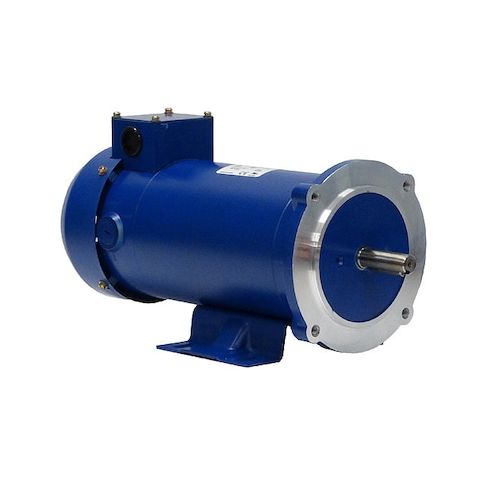

DC Permanent Magnet Motor, 3/4 HP, 7.8 A MPN:MT-035
DC Permanent Magnet Motor, 3/4 HP, 7.8 A
This 3/4 HP DC Permanent Magnet Motor from Weg is designed for use in applications requiring reliable and efficient DC power. With a continuous duty cycle and totally enclosed fan-cooled design, it operates in a wide range of environments. The motor's permanent magnet design provides consistent performance and reduced maintenance. It is suitable for applications such as material handling, robotics, and medical equipment. The motor's compact size and rigid base make it easy to integrate into existing systems. Its high reliability and long lifespan make it an ideal choice for industrial and commercial use.
Top product features:
- Totally Enclosed Fan-Cooled design provides a safe and efficient cooling system for the motor.
- Ball bearings ensure smooth and quiet operation of the motor.
- Continuous duty cycle capability allows the motor to operate for extended periods without overheating.
Top product applications:
- Conveyor Systems
- Material Handling Equipment
- Robotics and Automation
DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 3/4 HP, Nameplate RPM 1,750 RPM, Voltage 90V DC, 7.8 A Full Load Amps, 56C Frame, Motor Service Factor 1, Motor Thermal Protection Not Applicable, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Frame Material Steel, Motor Bearings Ball, Shaft Length 1 7/8 in
Additional Information
- Country of Origin: CN
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 15.80
- Package Width: 7.80
- Package Height: 8.50
- Package Weight: 25.12
Product info last updated on January 19, 2026 10:56pm UTC
Category: Motors
