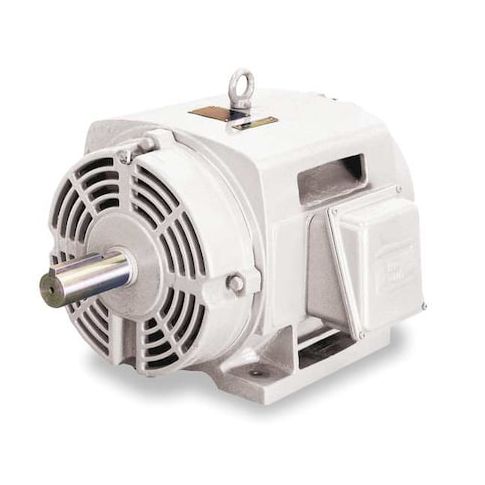

3-Phase Oil Well Pumping Motor, 10 HP, 256T Frame, 208-230/460V AC Voltage, 1, 110 Nameplate RPM MPN:01012OS3EOW256T
3-Phase Oil Well Pumping Motor, 10 HP, 256T Frame, 208-230/460V AC Voltage, 1, 110 Nameplate RPM
Power your oil well pumping operations with the Weg 3-Phase Oil Well Pumping Motor, a high-performance solution for demanding applications. This 10 HP motor is designed for continuous duty cycles and operates efficiently at 208-230/460V AC voltage. With a durable open dripproof enclosure and ball bearings, it withstands harsh environments and minimizes maintenance. Suitable for pump applications, this motor provides reliable performance and long lifespan. Its compact size, measuring 14.4 inches in diameter and 18.38 inches in length, makes it ideal for space-constrained installations. Order now and take advantage of Weg's 3-year manufacturer's warranty.
Top product features:
- Operates at a continuous duty cycle
- Has a 3-phase motor design
- Is an open dripproof enclosure
Top product applications:
- Oil Well Pumping
- Pump
- Motor
Oil Well Pumping Motor, Body Dia. 14.4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F2, Duty Cycle Continuous, Finish White, Frame 256T, Hz 60 Hz, Full Load Amps 29.9-27.0/13.5, Height 14 3/8 in, HP 10, Ins. Class F, Length Less Shaft 18 3/8 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.30
- Package Width: 19.20
- Package Height: 16.20
- Package Weight: 284.00
Product info last updated on March 21, 2026 6:55am UTC
Category: Motors
