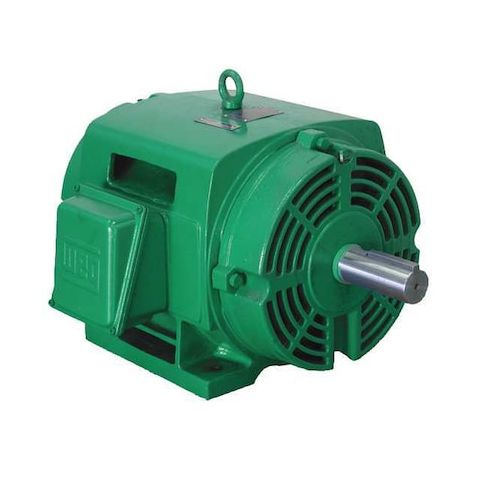

Three-Phase General Purpose Motor, 25 HP, 256T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM MPN:02536OT3E256T-W40
Three-Phase General Purpose Motor, 25 HP, 256T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 3535 rpm, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 57.6/28.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 30.00
- Package Width: 21.00
- Package Height: 17.00
- Package Weight: 270.00
Product info last updated on February 2, 2026 8:00am UTC
Category: Motors
