Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC, 380V AC Voltage MPN:04018OT3E324T-W40G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G303435360
Three-Phase General Purpose Motor, 40 HP, 324T Frame, 230/460V AC, 380V AC Voltage

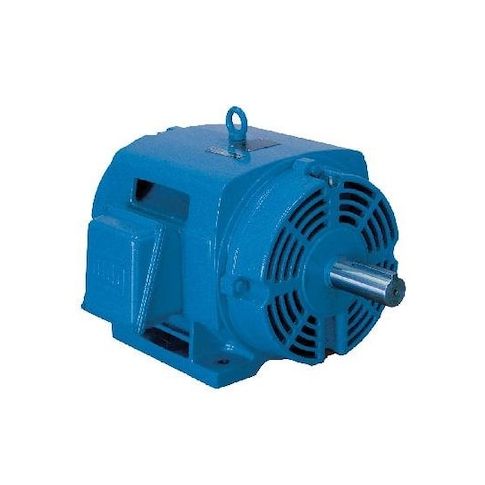

This 40 HP three-phase general purpose motor from Weg is designed for heavy-duty industrial applications, including manufacturing, material handling, and oil and gas operations. With a high efficiency rating of 94.1% and a robust cast iron frame, it provides reliable performance and long motor life. Suitable for use in a variety of environments, including high-temperature settings up to 40°C, this motor features a rigid base mounting system and ball bearings for smooth operation. Its compact design and versatility make it an ideal solution for applications requiring high power and reliability, including conveyor systems, pumps, and compressors.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof motor enclosure for protection against dust and moisture
- Ball motor bearings for smooth and quiet operation
Top product applications:
- Industrial Process Control
- Manufacturing Facilities
- Pumping Stations
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 40 HP, Nameplate RPM 1,775, Frame 324T, Voltage 230/460V AC, 380V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 47.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 94.1 Percent, 1,701-1,800, CA, cCSAus, CE, cULus, NEMA MG-1
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 35.00
- Package Width: 25.00
- Package Height: 19.60
- Package Weight: 481.00
Product info last updated on February 3, 2026 9:25pm UTC
Category: Motors
