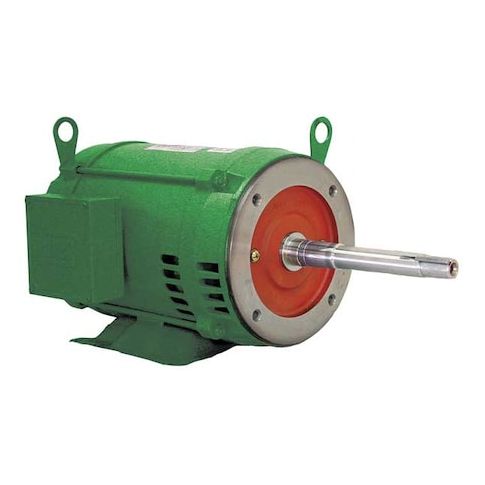

Pump Mtr, 3ph, 30hp, 3530, 208-230/460, 284JP MPN:03036OT3E284JP-W40
Pump Mtr, 3ph, 30hp, 3530, 208-230/460, 284JP
Close-Coupled Pump Motor, Body Dia. 15.7 in, Bolt Circle Dia. 11 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 284JP, Hz 60 Hz, Full Load Amps 63.4-70.4/35.2, Height 15 3/4 in, HP 30, HP @ 50Hz 25, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 18 13/16 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.22
- Package Width: 22.52
- Package Height: 17.80
- Package Weight: 366.00
Product info last updated on February 24, 2026 10:39am UTC
Category: Motors
