Three-Phase General Purpose Motor, 25 HP, 284T Frame, 575V AC Voltage, 1, 770 Nameplate RPM MPN:02518OT3H284T
Three-Phase General Purpose Motor, 25 HP, 284T Frame, 575V AC Voltage, 1, 770 Nameplate RPM

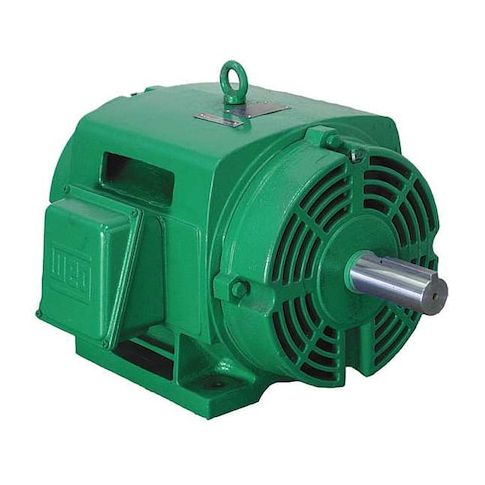

This high-performance 25 HP three-phase general purpose motor from Weg is designed for demanding industrial applications. With a nameplate RPM of 1,770 and a maximum ambient temperature of 40°C, it can operate in a wide range of environments. The motor's rigid base mounting and cast iron frame ensure stability and durability. Its 93.6% nominal efficiency and continuous duty rating make it an ideal choice for applications such as pumps, fans, and conveyor systems. With its CE, CSA, and UL certifications, this motor meets the highest standards of safety and performance, making it a reliable choice for industrial use.
Top product features:
- Three-Phase Design
- Open Drip Proof Motor Enclosure Design
- Ball Motor Bearings
Top product applications:
- Conveyor Systems
- Pumps and Compressors
- Industrial Fans and Blowers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 25 HP, Nameplate RPM 1,770, Frame 284T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 23.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93.6 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.20
- Package Width: 21.20
- Package Height: 17.70
- Package Weight: 383.00
Product info last updated on February 13, 2026 5:40am UTC
Category: Motors
