Pump Mtr, 3ph, 15hp, 1775, 208-230/460, 254JM MPN:01518OT3E254JM-W40
Pump Mtr, 3ph, 15hp, 1775, 208-230/460, 254JM

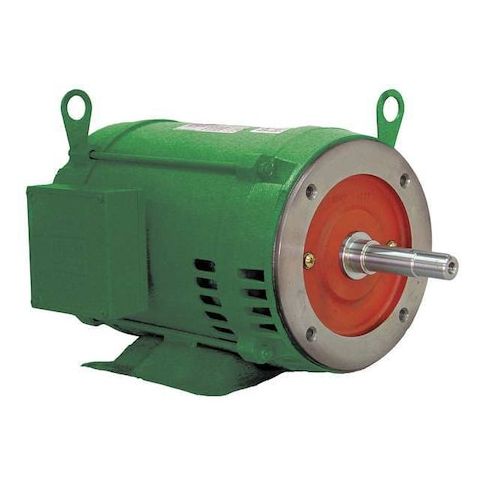

This 15 horsepower, three-phase close-coupled pump motor from Weg is designed for continuous duty cycles in a variety of applications. Ideal for use in industrial settings, it features a robust design with ball bearings and a high inverter rating of 1000:1, making it suitable for use with inverters and variable frequency drives. With a compact footprint and exterior conduit box, it is easy to integrate into existing systems. Its high efficiency and reliability make it a great choice for applications such as water treatment, chemical processing, and HVAC systems, where continuous operation is critical.
Top product features:
- Close-coupled design for compact installation
- Three-phase operation for efficient power distribution
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pump
- Motor
- Inverter
Close-Coupled Pump Motor, Body Dia. 12.9 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 254JM, Hz 60 Hz, Full Load Amps 41.1-37.2/18.6, Height 14 3/8 in, HP 15, HP @ 50Hz 10, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 17 1/4 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 60 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 22.00
- Package Height: 19.00
- Package Weight: 275.00
Product info last updated on February 6, 2026 3:30am UTC
Category: Motors
