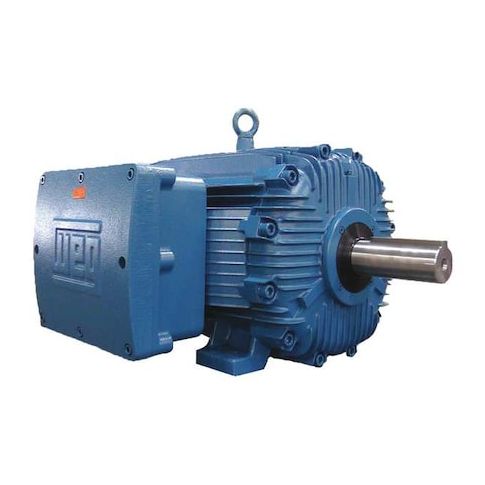

Hazardous Loc Mtr, 3 Ph, TEFC, 1-1/2 HP, T4 MPN:00156XT3E143T
Hazardous Loc Mtr, 3 Ph, TEFC, 1-1/2 HP, T4
This hazardous location motor is designed for use in areas where flammable gases or dust are present, meeting Class I, Class II, and T3C temperature codes. With a 1.5 HP rating and 3,500 RPM, it provides reliable power for applications such as oil and gas exploration, mining, and chemical processing. The motor's totally enclosed fan-cooled design and Class F insulation ensure safe operation in extreme temperatures. Its continuous duty cycle and 1.15 service factor make it suitable for demanding industrial environments, reducing downtime and increasing productivity.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled design
- Continuous duty cycle
Top product applications:
- High-speed centrifuges for hazardous environments
- Pumps for chemical processing plants
- Fans for explosive gas storage facilities
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 3,500 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 4.1/2.0 A, 143T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 17.50
- Package Width: 13.70
- Package Height: 11.30
- Package Weight: 67.00
Product info last updated on January 14, 2026 11:06am UTC
Category: Motors
