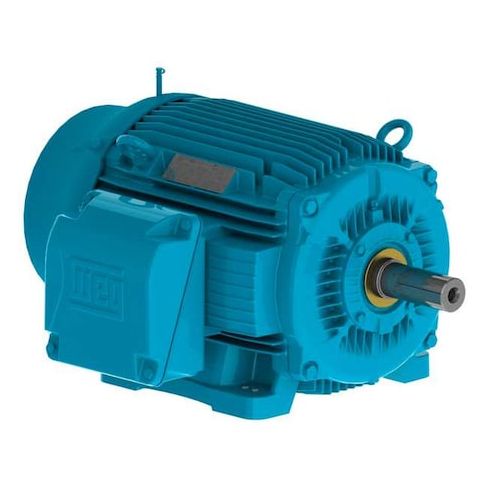

Three-Phase Severe Duty Motor, 5 hp HP, 184T Frame, 460V AC Voltage, 3, 485 RPM Nameplate RPM MPN:00536ST3QIE184T-W22
Three-Phase Severe Duty Motor, 5 hp HP, 184T Frame, 460V AC Voltage, 3, 485 RPM Nameplate RPM
This severe duty motor is designed for high-performance applications, delivering reliable operation in demanding environments. With a 5 hp rating and 3,485 RPM, it's ideal for use in industrial settings where continuous operation is required. The motor's totally enclosed fan-cooled design and rigid base mounting ensure efficient heat dissipation and stability. Suitable for use in temperatures up to 40°C, it's perfect for applications such as manufacturing, material handling, and processing. Its compact size and lightweight design make it easy to integrate into existing systems, minimizing downtime and maximizing productivity.
Top product features:
- Three-Phase design for efficient power distribution
- Totally Enclosed Fan Cooled enclosure for reduced noise and improved reliability
- Continuous Duty Cycle for uninterrupted operation in demanding applications
Top product applications:
- Pump applications in severe duty environments
- Heavy-duty conveyor belt systems
- Industrial machinery operations in high-temperature settings
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,485 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 5.9 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design Not Applicable
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.50
- Package Height: 13.00
- Package Weight: 110.00
