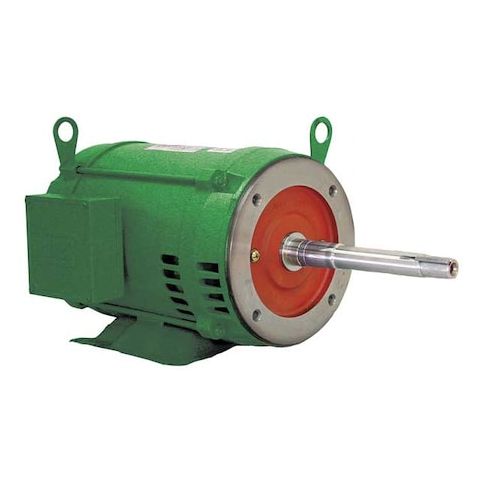

Pump Mtr, 3ph, 20hp, 3520, 208-230/460, 254JP MPN:02036OT3E254JP-W40
Pump Mtr, 3ph, 20hp, 3520, 208-230/460, 254JP
This 20 horsepower close-coupled pump motor is designed for continuous duty cycles in a variety of applications. Its robust construction and ball bearings ensure reliable operation in demanding environments. Suitable for use with pumps, this motor is ideal for industrial settings where efficiency and durability are paramount. With a high inverter rating of 1000:1, it can handle variable frequency drives with ease. Its compact design and exterior conduit box location make it easy to integrate into existing systems, providing a reliable and efficient solution for a range of industrial pumping applications.
Top product features:
- Three-phase operation
- Ball bearings for reduced friction and increased motor lifespan
- Continuous duty cycle for uninterrupted operation
Top product applications:
- Pump
- Motor Application Pump
- Motor
Close-Coupled Pump Motor, Body Dia. 14.3 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 254JP, Hz 60 Hz, Full Load Amps 44.3-49.2/24.6, Height 14 3/8 in, HP 20, HP @ 50Hz 15, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 17 1/4 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 33.00
- Package Width: 20.50
- Package Height: 16.00
- Package Weight: 244.00
Product info last updated on February 27, 2026 9:14am UTC
Category: Motors
