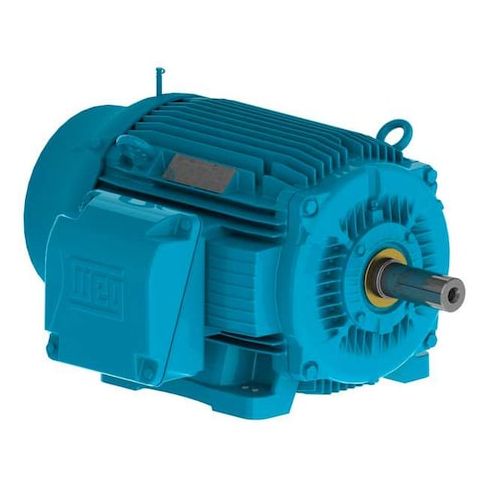

Three-Phase Severe Duty Motor, 15 hp HP, 254T Frame, 460V AC Voltage, 3, 530 RPM Nameplate RPM MPN:01536ST3QIE254T-W22
Three-Phase Severe Duty Motor, 15 hp HP, 254T Frame, 460V AC Voltage, 3, 530 RPM Nameplate RPM
This three-phase severe duty motor is designed for high-performance applications, providing reliable operation in demanding environments. With a 15 hp rating and 3,530 RPM, it's suitable for use in industrial settings where continuous operation is required. The motor's totally enclosed fan-cooled design and rigid base mounting ensure efficient heat dissipation and stability. Its severe duty rating makes it ideal for applications such as conveyor systems, pumps, and compressors in manufacturing, material handling, and other industries. With a 1.25 service factor, it can handle peak loads with ease, providing a reliable and efficient solution for high-demand applications.
Top product features:
- Three-phase design for efficient power distribution
- Totally Enclosed Fan Cooled enclosure for reduced noise and increased durability
- Continuous duty cycle for reliable operation in demanding applications
Top product applications:
- Heavy Industry Machinery
- Pumps
- Conveyors
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 15 hp HP, Nameplate RPM 3,530 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 17.2 A, 254T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 21.00
- Package Height: 16.00
- Package Weight: 280.00
Product info last updated on February 24, 2026 5:31am UTC
Category: Motors
