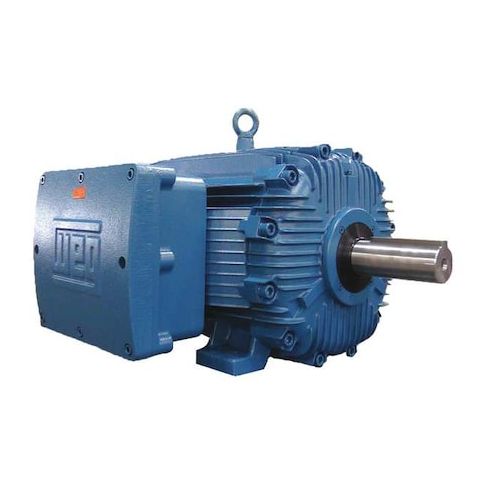

Hazardous Loc Mtr, 3 Ph, TEFC, 5 HP, T4 MPN:00536XT3E184T
Hazardous Loc Mtr, 3 Ph, TEFC, 5 HP, T4
This hazardous location motor is designed for use in environments where flammable gases or dusts are present, meeting Class I, Class II, and Temp. Code T3C requirements. Its three-phase, totally enclosed fan-cooled design provides reliable operation in temperatures up to 40°C. With a service factor of 1.15, this motor can handle demanding applications. Suitable for use at 208V, it's ideal for applications in the oil and gas, chemical, and pharmaceutical industries, as well as in other hazardous locations. Its compact size and durable construction make it a reliable choice for continuous duty cycles.
Top product features:
- Three-phase design
- Totally Enclosed Fan Cooled (TEFC) motor design
- Thermal protection via T-Stat
Top product applications:
- Pumps and compressors
- Industrial machinery and equipment
- Oil and gas industry applications
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,505 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.2/6.1 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 18.50
- Package Width: 14.50
- Package Height: 12.50
- Package Weight: 132.00
Product info last updated on February 4, 2026 1:55am UTC
Category: Motors
