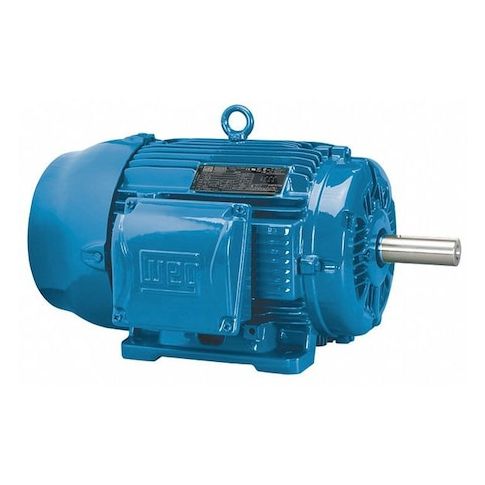

General Purpose Motor, Three Phase, 20 HP, 3520 rpm Nameplate RPM, 575V AC, 256T Frame MPN:02036ET3H256T-W22
General Purpose Motor, Three Phase, 20 HP, 3520 rpm Nameplate RPM, 575V AC, 256T Frame
This 20 HP three-phase general purpose motor is designed for demanding applications that require high performance and reliability. Ideal for use in manufacturing, processing, and industrial settings, this motor's 3520 rpm nameplate speed and 256T frame provide efficient power delivery. With a 91% nominal efficiency and continuous duty rating, it can handle heavy loads and operate in temperatures up to 40°C. Perfect for applications such as conveyor systems, pumps, and compressors, this motor's rugged construction and ball bearings ensure long-lasting performance. Its CSA, NOM, and UL certifications ensure compliance with industry standards.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- Rigid Base Motor Mounting Type
Top product applications:
- Pumps
- Conveyor Systems
- Industrial Fans
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 3520 rpm, Frame 256T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 18.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 20 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.60
- Package Width: 20.40
- Package Height: 16.50
- Package Weight: 310.00
Product info last updated on February 1, 2026 6:33am UTC
Category: Motors
