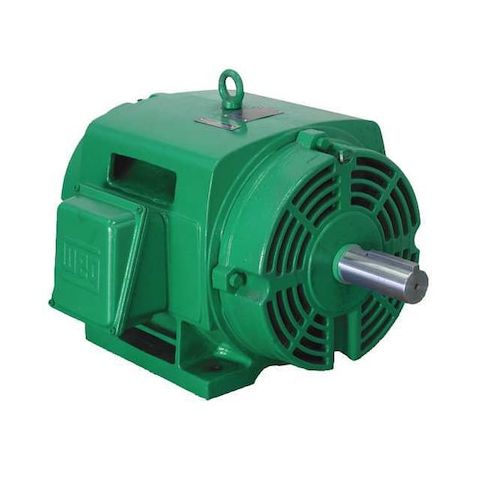

Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM MPN:02018OT3E256T-W40
Three-Phase General Purpose Motor, 20 HP, 256T Frame, 230/460V AC Voltage, 1765 rpm Nameplate RPM
This 20 HP three-phase general purpose motor is designed for a wide range of applications, including industrial processes, manufacturing, and commercial facilities. Its 256T frame and open drip-proof motor enclosure provide a reliable and efficient solution for continuous duty operation. With a nameplate RPM of 1765 and a maximum ambient temperature of 40 degrees C, this motor can handle demanding tasks in various environments. Its high efficiency of 93% and 1.25 service factor make it an ideal choice for applications where power is a concern, such as in textile, chemical, and food processing industries.
Top product features:
- Three-phase operation for efficient power distribution
- Open drip-proof motor enclosure design for improved safety and protection
- Ball motor bearings for reduced friction and increased motor lifespan
Top product applications:
- Pumps
- Fans
- Conveyors
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 1765 rpm, Frame 256T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.2/24.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 19.20
- Package Width: 27.30
- Package Height: 15.80
- Package Weight: 292.00
Product info last updated on January 31, 2026 3:54pm UTC
Category: Motors
