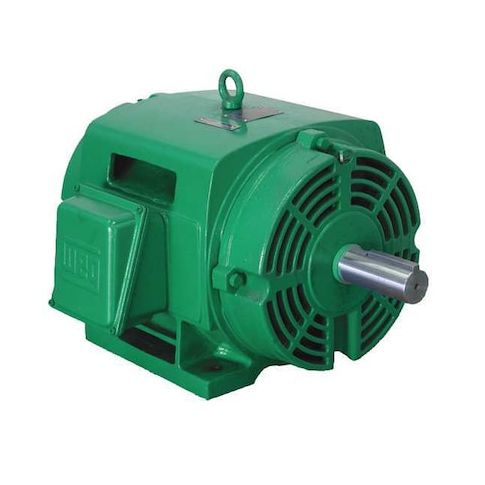

Three-Phase General Purpose Motor, 40 HP, 286TS Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM MPN:04036OT3E286TS-W40
Three-Phase General Purpose Motor, 40 HP, 286TS Frame, 230/460V AC Voltage, 3, 540 Nameplate RPM
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 40 HP, Nameplate RPM 3,540, Frame 286TS, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 93.6/46.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 93 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.00
- Package Width: 21.00
- Package Height: 18.00
- Package Weight: 388.00
Product info last updated on January 16, 2026 10:31am UTC
Category: Motors
