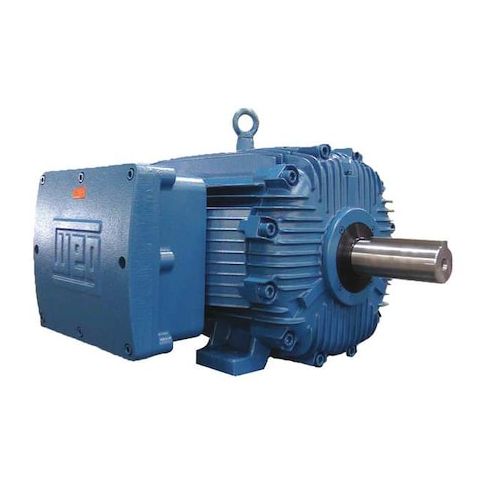

Hazardous Loc Mtr, 3 Ph, TEFC, 20 HP, T4 MPN:02018XT3E256T
Hazardous Loc Mtr, 3 Ph, TEFC, 20 HP, T4
This 20 HP hazardous location motor from Weg is designed for use in hazardous environments, including Class I and Class II locations. With its three-phase, totally enclosed fan-cooled (TEFC) design, it provides reliable operation in temperatures up to 40°C. The motor is suitable for applications requiring continuous duty cycles, such as in the oil and gas industry, and is also usable at 208V. Its high service factor of 1.15 ensures efficient operation, while its thermal protection and insulation class F ensure safe and reliable performance. Ideal for use in applications where safety and reliability are paramount.
Top product features:
- Three-phase operation
- Totally Enclosed Fan Cooled (TEFC) design
- Continuous duty cycle
Top product applications:
- Pumps
- Compressors
- Conveyors
Hazardous Location Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,770 RPM, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 50.0/25.0 A, 256T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class Class I, Class II, Temp. Code T3C, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.20
- Package Width: 20.00
- Package Height: 15.50
- Package Weight: 394.00
Product info last updated on January 14, 2026 1:18pm UTC
Category: Motors
