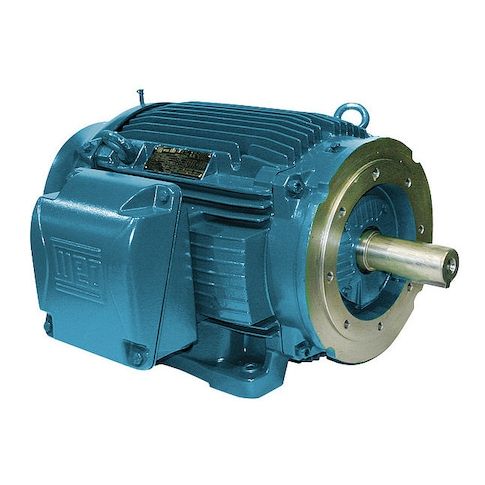

Three-Phase General Purpose Motor, 15 HP, 254TC Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM MPN:01536ET3E254TC-W22
Three-Phase General Purpose Motor, 15 HP, 254TC Frame, 230/460V AC Voltage, 3530 rpm Nameplate RPM
This 15 HP three-phase general purpose motor is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. Its totally enclosed fan-cooled design provides reliable operation in harsh environments, while its high efficiency of 91% helps reduce energy costs and minimize environmental impact. With a rigid base and C-face mounting, this motor is easy to install and integrate into existing systems. Suitable for continuous duty, it's perfect for applications such as conveyor systems, pumps, and fans. Its compact 254TC frame and 230/460V AC voltage make it a versatile solution for various industrial settings.
Top product features:
- Three-phase operation for efficient power distribution
- Totally enclosed fan cooled motor enclosure for reliable operation in harsh environments
- Ball motor bearings for smooth and long-lasting operation
Top product applications:
- Pump applications such as water, chemical, or oil pumps
- Fans and blowers for HVAC and industrial ventilation systems
- Conveyors and material handling equipment in manufacturing plants
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 3530 rpm, Frame 254TC, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 34.4/17.2 A, Rigid Base, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 29.50
- Package Width: 20.50
- Package Height: 16.00
- Package Weight: 290.00
Product info last updated on January 27, 2026 4:58am UTC
Category: Motors
