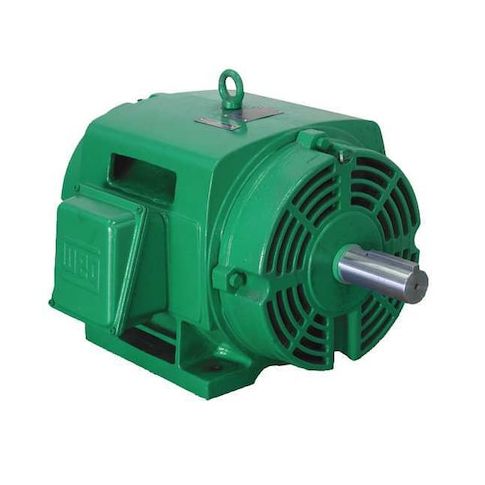

Three-Phase General Purpose Motor, 75 HP, 364/5T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM MPN:07518OT3E365T-W40
Three-Phase General Purpose Motor, 75 HP, 364/5T Frame, 230/460V AC Voltage, 1780 rpm Nameplate RPM
This 75 HP three-phase general purpose motor from Weg is designed for a wide range of industrial applications, including manufacturing, processing, and material handling. Its robust cast iron frame and open drip-proof enclosure make it suitable for use in harsh environments. With a high-efficiency design and continuous duty rating, this motor provides reliable and cost-effective operation. Its rigid base mounting and ball bearings ensure smooth and quiet operation. Ideal for use in facilities with ambient temperatures up to 40°C, this motor is a reliable choice for applications requiring high power and performance.
Top product features:
- Three-Phase AC Voltage Capability
- Open Drip Proof Motor Enclosure Design for Dust and Splash Protection
- Ball Motor Bearings for Smooth and Quiet Operation
Top product applications:
- Pumps and pumping systems
- Industrial machinery and equipment
- Fans and blowers
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 75 HP, Nameplate RPM 1780 rpm, Frame 364/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 171.0/85.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 95 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 42.00
- Package Width: 32.50
- Package Height: 30.00
- Package Weight: 920.00
Product info last updated on January 30, 2026 4:52am UTC
Category: Motors
