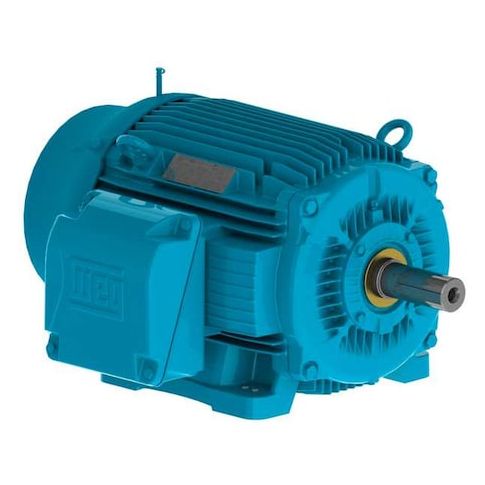

Three-Phase Severe Duty Motor, 20 hp HP, 286T Frame, 460V AC Voltage, 1, 175 RPM Nameplate RPM MPN:02012ST3QIE286T-W22
Three-Phase Severe Duty Motor, 20 hp HP, 286T Frame, 460V AC Voltage, 1, 175 RPM Nameplate RPM
This three-phase severe duty motor is designed for high-performance applications, delivering 20 horsepower at 1,175 RPM. Built to withstand harsh environments, it features a totally enclosed fan-cooled design and rigid base mounting for stability. With a 1.25 service factor and 60 Hz operation, it's ideal for continuous duty cycles in industries such as manufacturing, oil and gas, and mining. Its compact 286T frame and 460V AC voltage make it easy to integrate into existing systems, while its CW/CCW shaft rotation provides flexibility for various applications. Perfect for demanding operations, this motor provides reliable performance and long lifespan.
Top product features:
- Three-Phase Severe Duty Motor design provides high power output for demanding applications.
- Totally Enclosed Fan Cooled enclosure design protects the motor from environmental contaminants and reduces noise levels.
- Continuous Duty Cycle capability allows for uninterrupted operation over extended periods.
Top product applications:
- Pumps in severe duty applications
- Conveyor systems in heavy-duty manufacturing
- Centrifugal compressors in oil and gas production
Severe Duty Motor, Three Phase, Motor Design Three-Phase, 20 hp HP, Nameplate RPM 1,175 RPM, No. of Speeds 1, Voltage 460V AC, Full Load Amps 24.2 A, 286T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Max. Ambient Temp. 40 Degrees C, Motor Service Factor 1.25, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base, NEMA Design B, Motor Shaft Rotation CW/CCW
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 31.50
- Package Width: 22.50
- Package Height: 17.80
- Package Weight: 425.00
Product info last updated on January 23, 2026 9:49am UTC
Category: Motors
