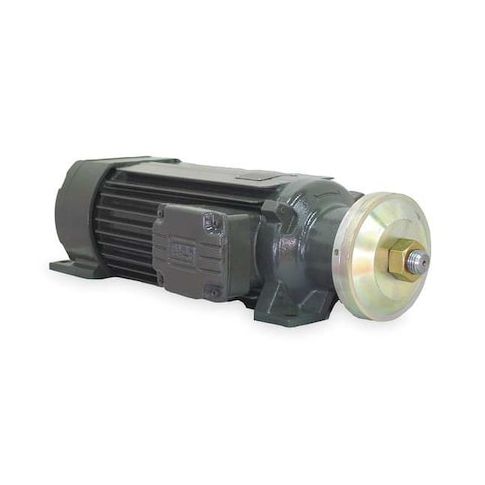

Arbor Motor, 5 HP, 3470 RPM, 208-230/460V MPN:00536ES3ESA80ML
Arbor Motor, 5 HP, 3470 RPM, 208-230/460V
The Arbor Motor from Weg is a powerful and reliable 5 HP, three-phase motor designed for demanding applications. With a high speed of 3,470 RPM, this motor is ideal for use in power tools, industrial machinery, and equipment that requires continuous operation. Its totally enclosed air-over design provides excellent protection from dust and moisture, while the rigid base mounting type ensures stable operation. The motor's continuous duty cycle and high service factor make it suitable for a wide range of applications, including woodworking, metalworking, and manufacturing. Its compact size and lightweight design also make it easy to integrate into new or existing systems.
Top product features:
- Three-phase design
- Totally enclosed air-over motor enclosure
- Continuous duty cycle
Top product applications:
- Pump motor for a water treatment plant
- Drilling rig motor for oil and gas exploration
- Industrial laundry equipment motor for heavy-duty washing machines
Power Tool Motor, Three Phase, Motor Design Three-Phase, 5 hp HP, Nameplate RPM 3,470 RPM, No. of Speeds 1, 208-230/460V AC Voltage, Full Load Amps 14.7-13.3/6.7 A, 80M Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CWSE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 24.50
- Package Width: 13.50
- Package Height: 9.00
- Package Weight: 107.00
Product info last updated on January 16, 2026 6:41am UTC
Category: Motors
