Three-Phase General Purpose Motor, 20 HP, 254T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM MPN:02036OT3E254T-W40
Three-Phase General Purpose Motor, 20 HP, 254T Frame, 230/460V AC Voltage, 3535 rpm Nameplate RPM

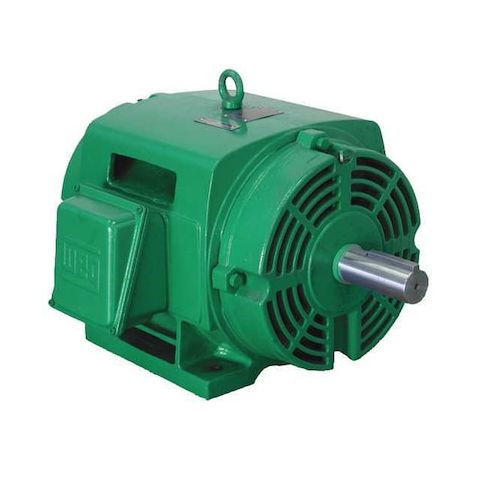

This 20 HP three-phase general purpose motor is designed for a variety of applications, including industrial processes, manufacturing, and commercial facilities. With a nameplate RPM of 3535, it provides reliable and efficient operation in a range of conditions. The motor's open drip-proof enclosure design and rigid base mounting make it easy to install and maintain. Its high efficiency of 91% and continuous duty rating make it an ideal choice for demanding applications. Suitable for use in environments up to 40°C, this motor is a versatile and reliable solution for a range of industrial and commercial needs.
Top product features:
- Three-phase design allows for efficient power delivery and reduced energy consumption.
- Open drip-proof motor enclosure design protects internal components from dust and moisture.
- Ball motor bearings provide smooth and quiet operation, reducing wear and tear on the motor.
Top product applications:
- Industrial conveyor systems
- Pumping stations
- Textile machinery
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 20 HP, Nameplate RPM 3535 rpm, Frame 254T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 48.6/24.3 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 27.00
- Package Width: 19.00
- Package Height: 16.00
- Package Weight: 210.00
Product info last updated on February 2, 2026 3:16pm UTC
Category: Motors
