Three-Phase General Purpose Motor, 7.5 HP, 213T Frame, 575V AC Voltage, 1800 Nameplate RPM MPN:00718ET3H213T-W22
Three-Phase General Purpose Motor, 7.5 HP, 213T Frame, 575V AC Voltage, 1800 Nameplate RPM

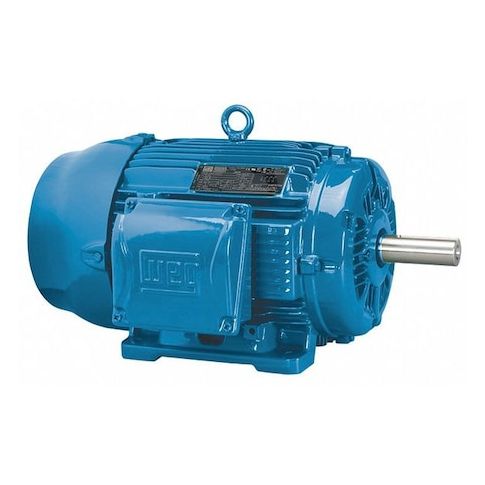

This 7.5 HP three-phase general purpose motor from Weg is designed for a wide range of applications, including industrial and commercial use. The totally enclosed fan cooled motor enclosure provides reliable operation in harsh environments, while the rigid base motor mounting type ensures stable performance. With a nameplate RPM of 1765 and a maximum ambient temperature of 40 degrees C, this motor is suitable for continuous duty in applications such as pumps, fans, and conveyor systems. Its high efficiency and robust design make it an ideal choice for industries requiring reliable and efficient power.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CW/CCW Motor Shaft Rotation
Top product applications:
- Pump applications
- Fans and blowers
- Conveyors and conveyor systems
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 7 1/2 HP, Nameplate RPM 1765 rpm, Frame 213T, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 7.34 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, NOM, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 10 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 23.00
- Package Width: 16.00
- Package Height: 14.00
- Package Weight: 156.90
Product info last updated on February 3, 2026 2:36am UTC
Category: Motors
