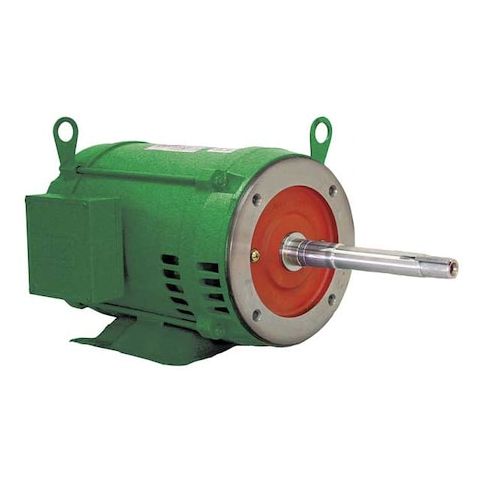

Pump Mtr, 3ph, 20hp, 1775, 208-230/460, 256JP MPN:02018OT3E256JP-W40
Pump Mtr, 3ph, 20hp, 1775, 208-230/460, 256JP
This close-coupled pump motor from Weg is designed for demanding industrial applications, providing continuous duty operation with a high power density. Suitable for use in a variety of pump applications, it offers a high level of efficiency and reliability. With a 20 horsepower rating and a wide range of voltage options, this motor can be easily integrated into existing systems. Additionally, its inverter-rated design allows for flexible operation and reduced energy consumption. Ideal for use in harsh environments, this motor features a rugged design and a 3-year manufacturer's warranty for peace of mind.
Top product features:
- Close-Coupled design for easy installation and reduced footprint
- Ball bearings for smooth and quiet operation
- Inverter Rated for use in variable frequency drive applications
Top product applications:
- Pump
- Inverter Rated
- Motor Application
Close-Coupled Pump Motor, Body Dia. 14.3 in, Bolt Circle Dia. 7 1/4 in, CC Number CC029A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 256JP, Hz 60 Hz, Full Load Amps 45.5-50.6/25.3, Height 14 3/8 in, HP 20, HP @ 50Hz 15, Ins. Class F, Inverter Rated Inverter Rated, Inverter Rating 1000:1, Length Less Shaft 19 in, Manufacturers Warranty Length 3 yr, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Three-Phase
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 36.00
- Package Width: 24.00
- Package Height: 22.00
- Package Weight: 348.00
Product info last updated on January 31, 2026 11:19pm UTC
Category: Motors
