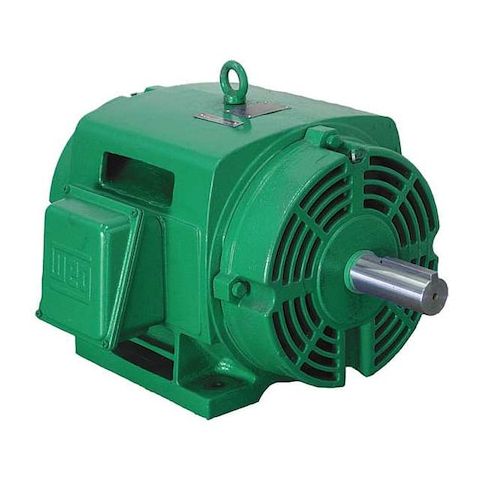

Three-Phase General Purpose Motor, 30 HP, 284TS Frame, 575V AC Voltage, 3545 rpm Nameplate RPM MPN:03036OT3H284TS
Three-Phase General Purpose Motor, 30 HP, 284TS Frame, 575V AC Voltage, 3545 rpm Nameplate RPM
This 30 HP, 575V AC three-phase general purpose motor is designed for heavy-duty applications requiring high power and efficiency. With a nameplate RPM of 3545 and a thermal protection class of F, it can handle continuous duty cycles in a variety of industries, including manufacturing, oil and gas, and water treatment. Its rigid base motor mounting type and cast iron frame ensure durability and stability, while its ball bearings and 92.4% nominal efficiency minimize maintenance and energy costs. Suitable for applications such as pumps, fans, and conveyors, this motor meets CE, CSA, and UL standards for safety and reliability.
Top product features:
- Three-phase operation allows for efficient power distribution and utilization.
- The open drip-proof motor enclosure design provides a level of protection against solid particles and liquid contamination.
- Ball motor bearings ensure smooth and quiet operation with reduced wear and tear.
Top product applications:
- Industrial Pump Systems
- Large Fan Systems
- Heavy-Duty Compressor Applications
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 30 HP, Nameplate RPM 3545 rpm, Frame 284TS, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 27.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 92.4 Percent, Continuous Duty, 3001-3600, CE, CSA, UL
Additional Information
- Country of Origin: ZZ
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 12 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 21.20
- Package Width: 29.30
- Package Height: 18.00
- Package Weight: 342.00
Product info last updated on January 31, 2026 5:58am UTC
Category: Motors
